Oxygen Sensor Waveform's



Here are some O2 signals I have captured from various applications.

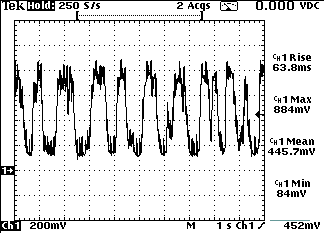

91 Ford Pickup 5.8L 96k miles

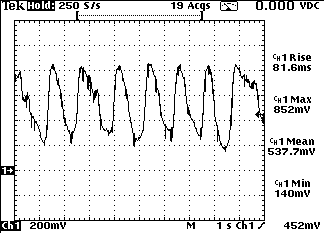

89 Ford Pickup 5.8L PFI 148k miles

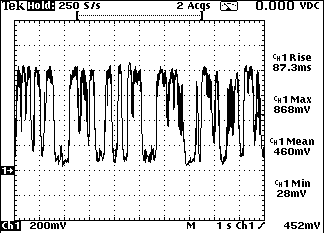

89 Pontiac Lemans 4cyl TBI 83k miles



90 Toyota F-Runner 3.0 PFI 102k miles

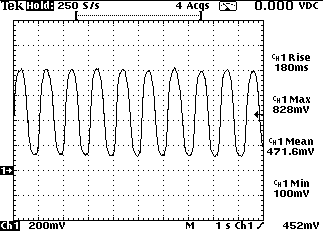

87 Mercedes 260 6cyl PFI 109k miles



89 Chevrolet Pickup 7.4L TBI 109k miles



90 Chevrolet Suburban 7.4LTBI 93k miles



90 Chevrolet Suburban 7.4LTBI 93k miles

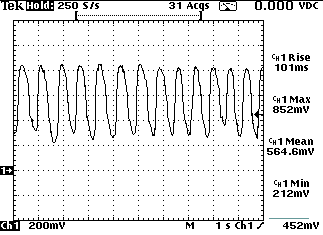

92 Toyota Pickup 4cyl PFI 40k miles

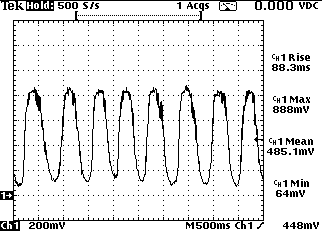

92 Ford Probe 2.2 4cyl PFI 83k miles
